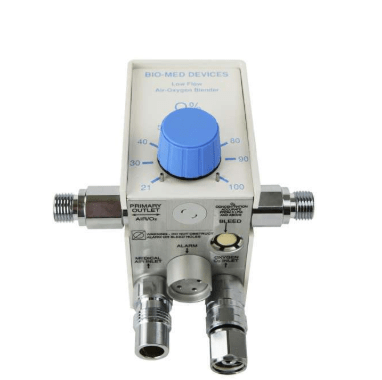

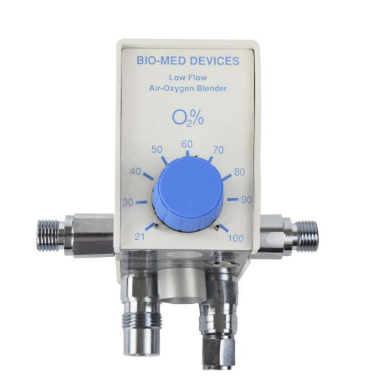

2003 Standard Low Flow Blender
| Height | 5.3″ (13.5 cm) | |
|---|---|---|
| Width | 4.77″ (12.1 cm) | |
| Depth | 4.56″ (11.6 cm) | |
| Weight | 2.38 lbs. (1.08 kg) | |
Ordering Information
2003 Standard Low Flow Blender w/DISS ports on Right and Left side (Note: using right side port activates 3 lpm bleed flow)
2007 Standard input fittings on our blenders are DISS air and oxygen. If you want NIST input fittings instead of DISS, add this part number to the order.
| Oxygen Concentration Range | 21-100% |
|---|---|
| Number of Output Ports | 2 (left and right sides) |
| Accuracy | +/- 3% full scale |
| Flow Range Accuracy | 0-30 lpm w/bleed active (right side port being used), 3-30 lpm w/no bleed active |
| Bleed Flow | 3 lpm (when active) |
